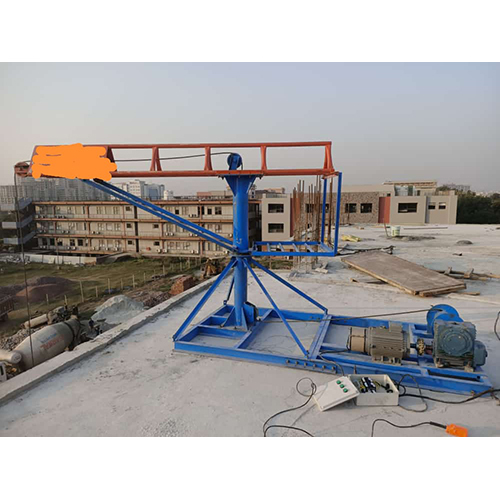

Monkey Lift

Monkey Lift Specification

Belt Type
Heavy Duty Rubber Belt

Features
Easy Installation, Low Maintenance

Control System
Electric Control Panel

Motor Type
Single Phase or Three Phase

Wheel Type
Solid Rubber Wheels

Rotation Type
360 Degree Swivel

Handle Type
Standard

Condition
New

Lifting Capacity
500 Kg Kilograms (kg)

Max. Lifting Load
500 Kg Kilograms (kg)

Product Type
Monkey Lift

Max. Lifting Height
100 Feet Foot (ft)

Power Source
Electric

Voltage
220-240 V Volt (v)

Length of Belt
30 Meter Meter (m)

Feature
High Efficiency, Durable

Warranty
1 Years

Attributes
Other

Monkey Lift Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque

Supply Ability
Unit

Delivery Time
1 Week

Packaging Details
Through Truck

Main Export Market(s)
Australia, North America, South America, Eastern Europe, Middle East, Africa, Western Europe, Asia, Central America

Main Domestic Market
All India

Certifications
ISO

About Monkey Lift

Owing to the vast industrial experience in this material handling manufacturing industry, we have been able to manufacture, supply and export a wide array of Monkey Lift to our customers. Precisely designed in compliance with the set industry standard, these lifts are known for their optimum load carrying capacity. Available with us in various specifications, this Monkey Lift is used in construction industry for lifting of bricks cement bags and concrete.

Features

Easy to use
Compact design
Safe operation

Specification :

Type	Electrically operated, Single Drum, Reversible, Heavy duty, with additional arrangement for two speeds, folding type.
Speed	15 to 20 mts, as per table below.
Skid	ISMC const, with lifting lugs, grouting hole, gussets and stiffners.
Gear Box	Totally enclosed, oil splash lubricated, worm and worm wheel type, Premium, Allroyd, Ruby, Omex, make, TC issued.
Panel	With single phase preventor, overload relay, MCB. Pendent with 6 mts cable, Component L&T, BCH, Siemens, Minilec make, housed in Powder coated sheet metal cabinet.
Hook	One of suitable Cap.
Trolley	M.S. Fabricated, two wheel type.
Brake	Fall Safe EHT/Disc Brake
Warranty	One year against manufacturing defects, bad workmanship.
Application	Lifting load, tested on 25% over load TC issued.
Height	Up to 300 ft from ground level.
Drum	Heavy duty, MS fabricated with side flanges.
Motor	TEFC, 3 phase, 50 cycles, AC, Sq. Cage, ABB, Greaves, NGEF, L&T make TC issued.
Wire rope	Hemp core, 6x36 or 6x19 const., TC issued
Trolleys	Two nos.
Rotation	270 Degree

Safety Features :

Protection for Phase Loss, Change in Phase sequence, Electrical interlocking, overload protections are built in features in our machine.
Counter weight not included.

Model and main features of Ruby brand Monkey lift :

Particular	Model NO. M/W 500	MW/ 350	MW / 250
Weight	500 Kgs	350	250 kgs
Speed/mts/min	16 to 18 mts	15 to 16	18 to 20
HP of Motor	5	2	2
Height	Up to 250 ft	Up to 250 ft	Up to 250 ft
Boom Length	8 ft	8 ft	6 ft
Total Height	7.5	7.5	7.5
Wire rope size	10 mm	8 mm	8 mm

Robust Construction and High Efficiency

Crafted from mild steel with a powder-coated finish, the Monkey Lift is built to withstand rugged construction environments. Its advanced motor and steel wire rope ensure both high performance and safety during material lifting operations. The integration of heavy-duty rubber belts and solid rubber wheels allows for smooth mobility across various outdoor terrains.

User-Friendly Operation and Safety

The equipment features an automatic clutch system, electric control panel, and standard handle design, making it easy to operateeven for less experienced users. Its low maintenance requirements and simple installation contribute to hassle-free usage, letting operators focus more on lifting tasks and less on upkeep.

Versatile Application and Durable Design

Ideal for outdoor construction sites, the Monkey Lift supports the lifting of varied building materials up to 500 kg. Designed for both single phase and three phase power sources, its durable components and 360-degree swivel rotation maximize versatility. This makes it a practical choice for various construction projects in India.

FAQs of Monkey Lift:

Q: How is the Monkey Lift installed and operated at a construction site?

A: The Monkey Lift is designed for easy installation and use. Its mobile and portable mounting allows users to set it up quickly at various locations. Operation is simplified through an electric control panel and automatic clutch system, enabling smooth lifting and rotation with minimal effort.

Q: What materials can the Monkey Lift safely lift and up to what height?

A: This equipment is capable of lifting a wide range of construction materials, including bricks, cement, and aggregates, up to a maximum height of 100 feet. With a high lifting capacity of up to 500 kg, it safely manages heavy loads during outdoor construction applications.

Q: When should the Monkey Lift be used at a construction site?

A: The Monkey Lift is especially valuable whenever there is a need to move large volumes of materials vertically or across elevated levels. It is ideally suited for building construction, renovations, or any outdoor project that involves heavy load lifting, providing increased efficiency and safety.

Q: Where can the Monkey Lift be transported or positioned during usage?

A: Thanks to its portable design and solid rubber wheels, the Monkey Lift can be easily moved and positioned around different areas on a construction site. The equipments mobile mounting enables it to support multiple lifting locations, adapting to changing project requirements.

Q: What is the process for maintaining and servicing the Monkey Lift?

A: Maintenance is straightforward due to the equipments low-maintenance design and robust construction. Regular checks of the steel wire rope, motor operation, and control panel are recommended. The unit comes with a one-year warranty, and service support is available from the manufacturer or supplier in India.

Q: How does using the Monkey Lift benefit construction operations?

A: Utilizing the Monkey Lift enhances workplace efficiency by speeding up the lifting process, reducing manual labor, and improving safety. Its high lifting speed and easy operation streamline construction workflows, while the durable build ensures reliable performance over extended use.
